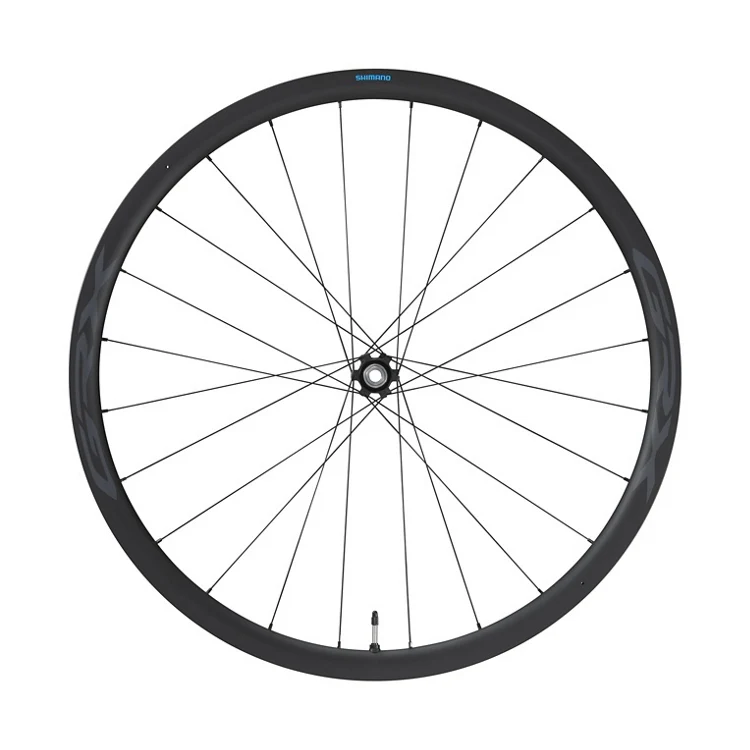

Shimano GRX RX870 700C Cyclocross Front Wheel



Faster, further, and more fun

The new GRX wheel supports gravel rides that are faster, further, and more fun. Wider tires need wider rims to maintain lateral tire stability at low air pressures. Shimano studied the complicated relationship between tire size, rim width, air pressure, and tire lateral rigidity to optimize the GRX rim width for 32-50c tires. In addition, we pursued the best balance of rim weight, strength, and profile in order to deliver an exceptional gravel wheel.

FEATURES:

• First SHIMANO GRX carbon wheel
• 32 mm height full carbon rim
• Internal rim width: 25 mm
• Recommended tire size: 32-622 - 50-622
• Road 11 & 12-speed compatible

SPECIFICATIONS:

• MODEL NO WH-RX870-TL-F12-700C
• SERIES GRX 11-speed
• Average weight 639
• Spokes_Straight pull ✔
• Brake type CENTER LOCK disc brake
• Axle fixing method E-THRU
• O.L.D. (mm) 100
• Thru axle (length x inner diameter ; mm)_100 x 12 ✔
• Disc mount_140 mm Disc brake rotor compatible ✔
• Disc mount_CENTER LOCK ✔
• Front/Rear Front
• Reflector_AS CATEYE RR-550-WUA SW
• Reflector_DIN CATEYE RR-317-WUA SW
• Reflector_JIS/CPSC CATEYE RR-550-WUW SW
• Rim_Height (mm) 32
• Rim_Requires rim tape ✔
• Seal_Hub Contact
• Spokes_Bladed ✔
• Spokes_Butted ✔
• Spokes_Number 24
• Tire_Recommended size 32-622 - 50-622
• Tire_Type Tubeless
• Wheel Size 622 x 25C (700C)
• Color_1 Hub shell Black
• Model name WH-RX870-TL
• Rim_External width (mm) 30.7
• Rim_Internal width (mm) 25
• Spokes_Diameter (mm) 2.0-1.6-2.0
• Specification F12-700C
